How Long Does PVC Geomembrane Last?

PVC geomembrane as know as geomembrane liner, is a type of flexible plastic sheet material made from polyvinyl chloride (PVC), commonly used in civil and environmental engineering projects. It serves as a barrier to prevent the transmission of liquids or gases and is particularly useful in waterproofing, soil stabilization, and waste management applications.BPM GEOSYNTHETICS PVC geomembranes are durable and chemically resistant, making them suitable for a variety of uses, including linings for ponds, canals, landfills and reservoirs. Compared to other materials, they offer advantages such as reduced leakage, long-term stability and relative ease of installation, making them a cost-effective solution for critical barrier requirements.

1. Characteristics And Applications Of PVC Geomembrane

pvc Geomembrane is a thermoplastic PVC membrane made of polyvinyl chloride resin as the main raw material, adding a variety of chemical additives, and processed through mixing, extrusion molding and vulcanization.

1.1 PVC Geomembrane Product Features

1. PVC waterproofing membrane has high tensile strength, good elongation and small thermal dimensional change rate.
2. It has good weldability, and the seams become one with the parent material after hot air welding.
3. It has good water vapor diffusion, condensate is easy to release, and moisture and moisture left in the base are easy to discharge.
4. It is resistant to aging, UV radiation, chemical corrosion, and root penetration.
5. It has good flexibility at low temperature (-20℃).
6. The colored surface reflects ultraviolet radiation, and the surface of PVC waterproofing membrane absorbs less heat and has a low temperature.
7. Excellent flexibility and stretchability, high tensile strength, excellent dimensional stability, high mechanical strength, erosion resistance, resistance to root penetration, weather resistance, UV resistance, and hail resistance.

1.2 PVC Geomembrane Applications

PVC geomembranes, due to their flexibility, chemical resistance, and durability, find applications in various industries and projects where containment, protection, and impermeability are essential. Some common applications of PVC geomembranes include:

1. Landfills: Used as liners in landfills to prevent leachate contamination and protect soil and groundwater from pollutants.

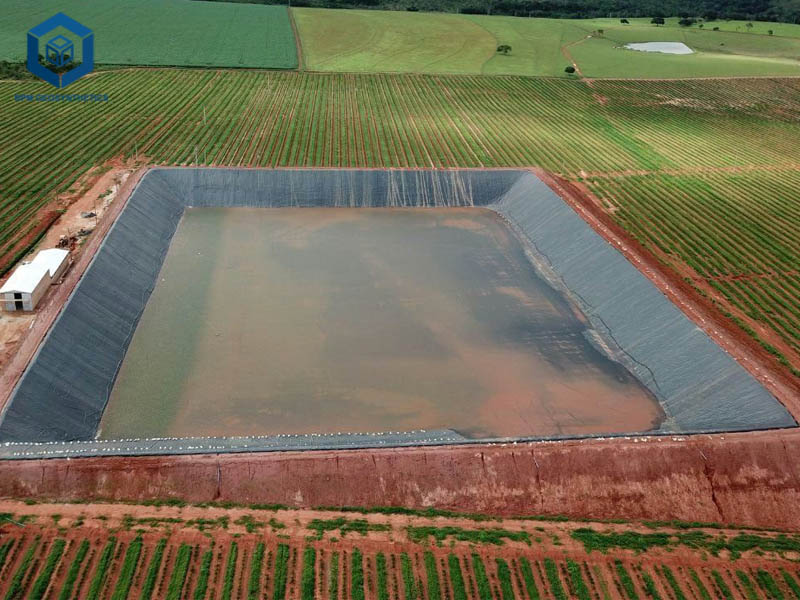

2. Pond and Reservoir Liners: Installed in ponds, reservoirs, and water storage facilities to create impermeable barriers, preventing water seepage and facilitating water containment.
3. Mining Operations: Applied in mining for lining tailings ponds, heap leach pads, and storage facilities to contain industrial waste and prevent environmental contamination.
4. Wastewater Treatment: Utilized in wastewater treatment plants for lining lagoons, tanks, and containment structures to prevent the infiltration of contaminants into the environment.
5. Aquaculture: Used in aquaculture settings to line fish ponds, hatcheries, and other aquatic containment systems, ensuring water containment and preventing seepage.
6. Decorative Ponds: Employed in decorative ponds and water features for landscape design, providing a waterproof barrier and maintaining water levels.
7. Waterproofing: Used in construction projects for waterproofing foundations, basements, tunnels, and other structures to prevent water infiltration and damage.

2. The Service Life Of PVC Geomembrane

The service life of pvc Geomembrane is generally about 20 years.

2.1 Service Life Of PVC Geomembrane

PVC geomembrane is a waterproofing material used in construction projects such as roofs and basements. Its typical lifespan is around 20 years, influenced by quality, materials, and construction techniques. With high-quality materials and proper construction, the lifespan can be longer.

2.2 Factors Affecting PVC Geomembrane

2.21 Material quality

Different waterproofing membrane materials have different quality and durability. pvc Geomembrane has better quality and its service life can usually reach about 20 years

2.22 Construction technology

Construction techniques significantly affect the lifespan of waterproofing membranes. Poor workmanship leads to reduced longevity. Attention must be paid to overlapping and seam treatments to ensure construction quality meets standards.

2.23 Environmental conditions

Building environments impact the lifespan of waterproofing membranes. Humid conditions can corrode the membrane, reducing its longevity. Choose durable membranes based on environmental factors.

3. Evaluation Method Of PVC Geomembrane Service Life

The evaluation method for the service life of PVC geomembrane typically involves several steps, including material analysis, environmental assessment, and historical performance review. Here’s a simplified process:

3.1 Material Analysis:

Test the physical and chemical properties of the PVC geomembrane to determine its resistance to UV radiation, temperature extremes, and chemicals it may encounter in the environment.

3.2 Environmental Assessment:

Consider the specific conditions where the geomembrane will be used, such as exposure to sunlight, temperature fluctuations, humidity, and chemical exposure.

3.3 Historical Performance Review:

Review data on how similar materials have performed under comparable conditions over time. This can provide empirical evidence of expected lifespan.

3.4 Accelerated Aging Tests:

Perform laboratory tests simulating long-term environmental effects to predict how the material will age.

3.5 Standards and Guidelines:

Refer to industry standards and guidelines that provide criteria for assessing the life expectancy of geomembranes.

3.6 Field Inspections:

Regular site inspections can help evaluate the current state of the geomembrane and identify any early signs of deterioration.

3.7 Statistical Modeling:

Use statistical models to analyze all collected data and make a prediction about the service life based on the observed trends and extrapolations.

4. How To Extend Service Life Of PVC Geomembrane?

Extending the service life of PVC geomembranes involves proper installation, maintenance, and care to ensure their durability and effectiveness. Here are some key practices to help extend the service life of PVC geomembranes:

4.1 Proper Installation:

• Ensure the PVC geomembrane is installed by following manufacturer guidelines and industry best practices to prevent damage during installation.

4.2 Surface Preparation:

• Properly prepare the substrate to ensure a smooth, clean, and stable surface for the PVC geomembrane installation. Remove any sharp objects, debris, or rough surfaces that could puncture or damage the liner.

4.3 Quality Control:

• Conduct quality control checks during installation to ensure seams are properly welded, and the liner is free of wrinkles, folds, or other defects that could compromise its integrity.

4.4 Protection from UV Exposure:

• Consider using UV stabilizers or protective layers to shield the PVC geomembrane from prolonged exposure to sunlight, which can degrade the material over time.

4.5 Avoid Damage from Sharp Objects:

• Prevent damage by avoiding sharp objects on or near the PVC geomembrane. Implement protective measures to prevent punctures or tears.

4.6 Regular Inspections:

• Periodically inspect the PVC geomembrane for signs of wear, damage, or deterioration. Address any issues promptly to prevent further damage.

4.7 Proper Maintenance:

• Implement a maintenance schedule that includes cleaning the geomembrane surface, inspecting for damage, and addressing any issues as soon as they are identified.

4.8 Avoid Harsh Chemicals:

• Avoid exposing the PVC geomembrane to harsh chemicals or substances that could degrade the material. Ensure compatibility with any chemicals that may come into contact with the liner.

4.9 Temperature Considerations:

• Be mindful of temperature extremes that can affect the PVC geomembrane. Ensure the material can withstand both high and low temperatures without compromising its integrity.

4.10 Repair Promptly:

• If damage occurs, repair it promptly using appropriate repair methods recommended by the manufacturer to prevent further deterioration.

5. Conclusion

The service life and maintenance of pvc geomembrane directly affect the waterproof effect of buildings. In order to extend the service life of geomembrane liner, we should choose high-quality materials, pay attention to construction quality, and regularly inspect, clean, maintain and repair them. Through these measures, it can be ensured that the geo membrane can durably and effectively perform its waterproof function and protect the building from water damage.
